MVR Direct Drive Compressor Energy Saving Lubricated MVR Steam Compressor

Name: MVR Direct Drive Compressor Energy Saving Lubricated MVR Steam Compressor
Brand: LAISHUN
Price: 1 USD

Buy cheap MVR Direct Drive Compressor Energy Saving Lubricated MVR Steam Compressor product

Supply Ability : Single item，60-90 days

machinery test report : Provided

core components : PLC, Pressure Vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox, Other

Model Number : customization

gas type : customize

New process : Explosion-proof and anti-surge valve regulation

Payment Terms : L/C,T/T

voltage : 380 V

air capacity : customize

Power : customized for customers

Price : Single item，230000 USD

configuration : Stationary

Application : customize

Product name : High and low-speed direct drive compressor

MOQ : 1 Pcs

Delivery Time : 60-90 days

Cooling Method : customize

video outgoing-inspection : Provided

OEM : OEM Services Provided

Certification : CE, ISO9001, IS014001, HSAS18001, IATF16949 system certification CCS、DNV

power source : DC Power

Brand Name : LAISHUN

type : Direct drive compressor

Place of Origin : Chongqing, China

lubrication style : Lubricated

Packaging Details : Customized wooden box, customized iron box

mute : Yes

Contact Now

Direct Drive Compressor

Our direct drive compressor eliminates mechanical losses by directly coupling the motor with the rotor, completely removing belt or gear transmission inefficiencies. This innovative design improves overall system efficiency by 20%-35%, with some system-level transformation cases achieving up to 60% energy savings.

Comprehensive Energy Efficiency Assessment

Through our free on-site working condition survey service, our professional team utilizes advanced equipment including pressure dew point meters, ultrasonic leak detectors, and flow recorders to perform 7 core diagnostics on compressed air pipelines:

Leak point localization (typical leak volume of 20%-30%)
Pressure band optimization (7% energy saving for every 1 bar reduction)
Equipment loading rate analysis
Gas demand matching
Pipeline pressure drop evaluation
Dryer efficiency detection
Group control strategy evaluation

Our team accurately identifies energy efficiency gaps using the ISO 11011 standard model, combining enterprise electricity prices, annual operating hours, and measured power curves to quantify exclusive energy-saving benefits.

Quantified Energy Savings

Example: A 75 kW traditional air compressor transformed into a direct drive permanent magnet frequency converter model can achieve:

• Annual energy savings: 280,000 kWh

• Electricity cost savings: Over 180,000 yuan annually

• Investment payback period: Typically less than 1.5 years

• Carbon emissions reduction: Approximately 220 tons/year

Ideal Applications

Particularly suitable for manufacturing-intensive scenarios including automotive parts, electronics, and food processing in high electricity consumption, high temperature, and high humidity environments. This represents a paradigm shift from "equipment replacement" to "system-level energy efficiency asset upgrade."

Technical Variants

Low-Speed Direct Drive: Driven by regular motor with oil bearing support; suitable for high-flow process technology.

High-Speed Direct Drive: Utilizes synchronous/asynchronous high-speed motor drive with magnetic levitation bearings; suitable for low-flow process technology.

Key Features

Three-point automatic control with wider application range
Remote monitoring service capability
Highly integrated, compact structure for easy maintenance
Clean, oil-free operation with stable pressure and low noise
High efficiency with isentropic efficiency greater than 82%
Series/parallel operation capability to meet diverse needs
Customization services tailored to specific customer requirements

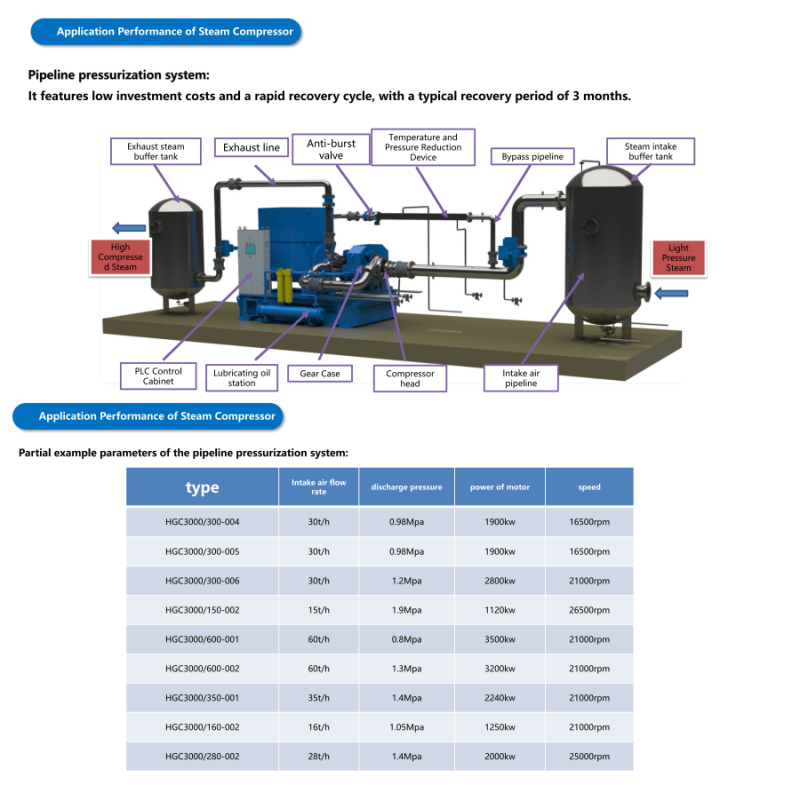

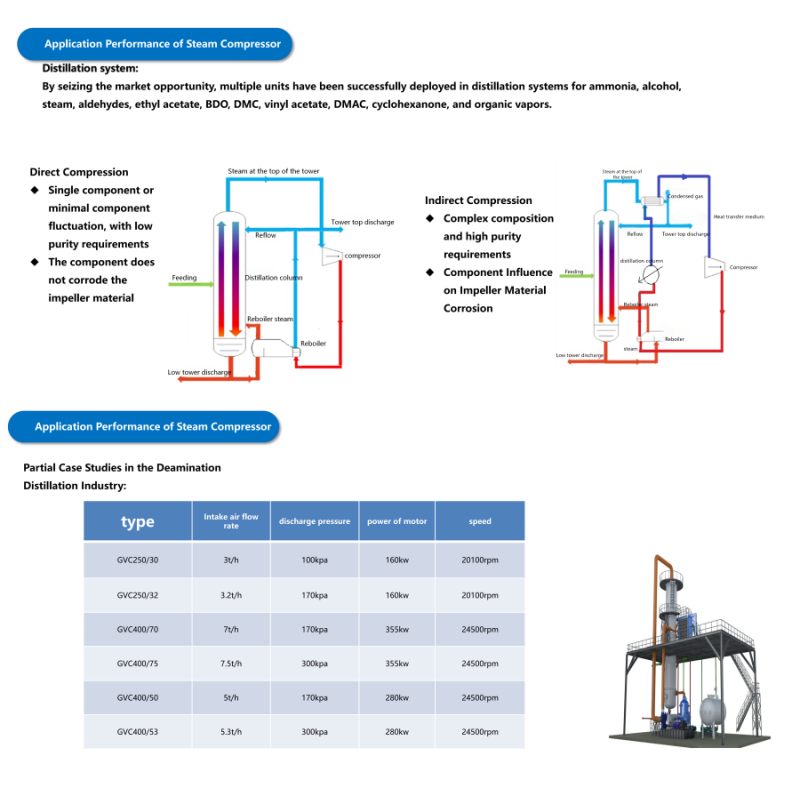

Application performance of steam compressors
Compared to other types of evaporators, MVR evaporators have the characteristics of the lowest energy consumption, small footprint, minimal impact on product quality, simple control system, and high stability.
Type	Single effect evaporator	Multi-effect evaporator	MVR evaporator
Energy consumption	High energy consumption, theoretically 1 ton of steam is required to evaporate 1 ton of water	More energy-efficient, generally speaking, as the efficiency increases, the energy consumption also decreases accordingly	The most energy-efficient evaporator technology currently requires only 15KW/h to 50KW/h of electricity to evaporate each ton of water.
Floor area	small	big	small
Impact on product quality	Short dwell time, but high temperature, with minimal impact on product quality	Long dwell time, high temperature, and minimal impact on product quality	Short residence time, evaporation due to temperature difference, minimal impact on product quality
Energy mode	To use steam heating, a steam pipeline network and boiler are required	To use steam heating, a steam pipeline network and boiler are required	Electricity is sufficient, no steam pipe network required, fully self closing circulation system
operating cost	tall	higher	low
Stability	poor	poor	Good

MVR Direct Drive Compressor Energy Saving Lubricated MVR Steam Compressor
